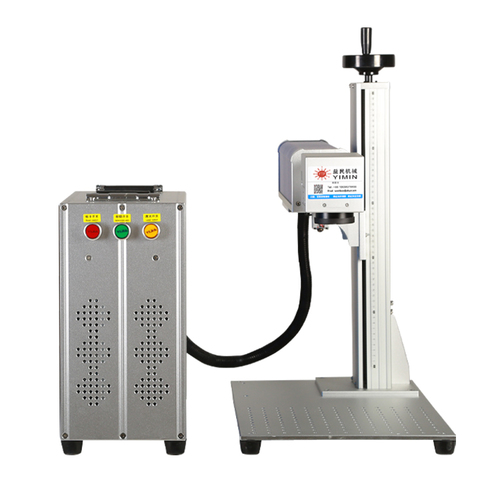

Portable Laser Marking Machine

Portable Laser Marking Machine

2300.00 - 3500.00 USD ($)/Set

Product Details:

X

Price And Quantity

  • 1 Set
  • 2300.00 - 3500.00 USD ($)/Set

Product Description

Our company is considered as the number one source to obtain highest quality Portable Laser Marking Machine at affordable prices. Our personnel make use of the latest technology and high end equipment to create the best range of Portable Laser Marking Machine. Since the time we have entered the industry, our aim has been to offer the gamut and high performing gamut. All across the globe we have been ensuring our presence in every major market and proved our capabilities.

Product Details :

Dimension :

800*220*550mm

Net weight:

32 kg

Gross weight:

65 kg

Product advantages :



  • High electro-optic conversion efficiency, simple operation, Compact in structure, support harsh working environment, no consumables.
  • Low power consumption, stability laser output. the marking is permanent and corrosion resistant
  • High quality beam, small machine dimension, This highly integrated laser source increases the machine's anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
  • Smaller output laser beam, finer marking line. suitable for high precision marking
  • Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
  • 30watt portable fiber laser engraver with raycus/max/super laser source



Technical Details :

Product Name

Portable fiber laser engraver

Laser Type

Fiber laser

Model

YM-FEP-30W

Certifications

CE, ISO, OTHER

Power

20W(10W 30W,50W optional)

Brand

YIMIN

Country of Origin

CHINA

Work Precision

+0.01mm

Support Format

PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX

Software

EZCAD

Cooling Way

AIR COOLING

Condition

NEW

Warranty

36 months

Work Area (mm)

110x110-200*200mm

Min Line Width

0.017mm

Min Character

0.15mmx0.15mm

Wavelength

1064nm

After-Service

Engineers available to service machinery overseas

Laser Repetition Frequency:

20KHz-80KHz(adjustable)

Power Demand

AC220V/50HZ/2A

Optimum Working Temperature

10-35 °C

Marking Depth

0.01-1.0mm (subjejct to material)

Application industry :



  • It is widely used in electronic components, hardware industry, Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry
  • Daily consumer goods, sensors, auto parts, artwork, precision apparatus, craft, Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number,
  • Medical machinery, high-low electric, bath industry, battery industry, IT industry bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries. , cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines. etc.



Applied Materials:



  • All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
